Structural · S-R8VJ4

Typical Masonry Retaining Wall Detail

Materials

Concrete Masonry / CMU

Elements

Walls Retaining Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

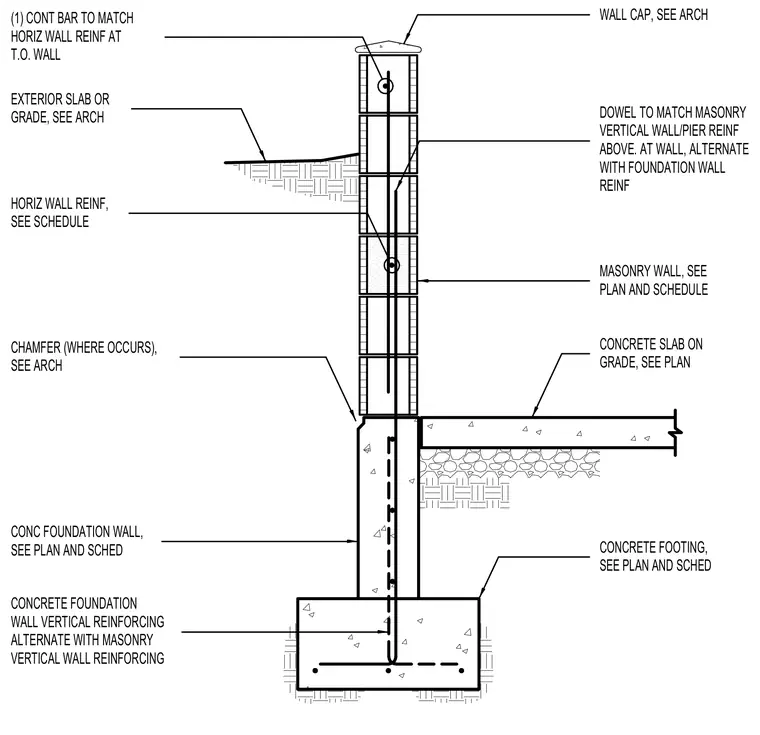

A masonry retaining wall is supported by a cast-in-place concrete foundation wall and a concrete footing. Vertical reinforcing bars in the concrete foundation wall alternate with masonry vertical wall reinforcing. An exterior slab on grade bears against the foundation wall, featuring an architectural chamfer where applicable. The masonry wall extends upward, containing horizontal wall reinforcement per schedule and topped with a continuous bar at the top of the wall below an architectural wall cap.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
