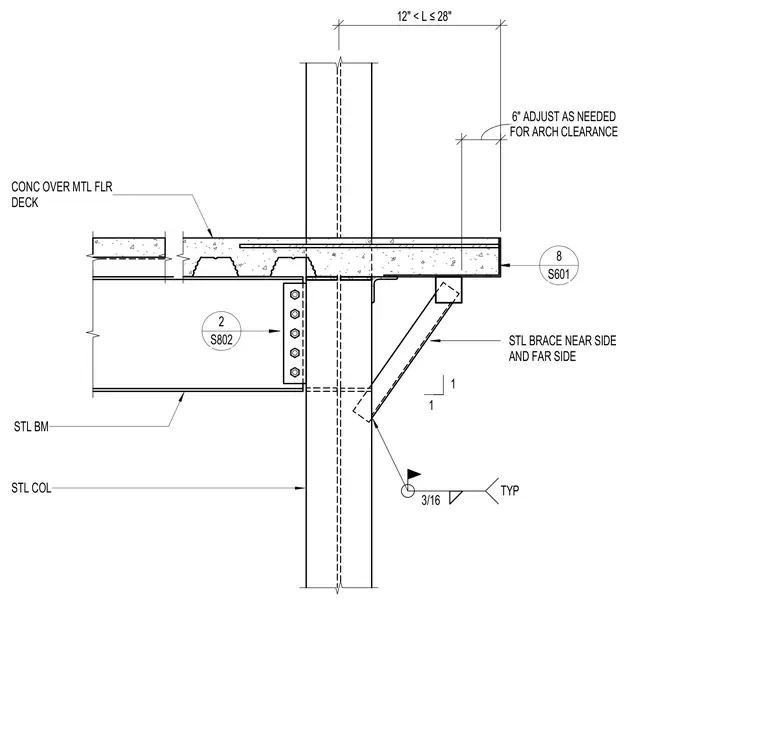

A steel brace is connected near side and far side to a steel column and steel beam supporting a concrete over metal floor deck. The brace is welded with typical three-sixteenths fillet welds. Dimensions indicate clearances adjusted as needed for architectural clearance.
STL COL STL BM CONC OVER MTL FLR DECK STL BRACE NEAR SIDE AND FAR SIDE 1 1 12" < L ≤28" 2 S802 8 S601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED 3/16 TYP
