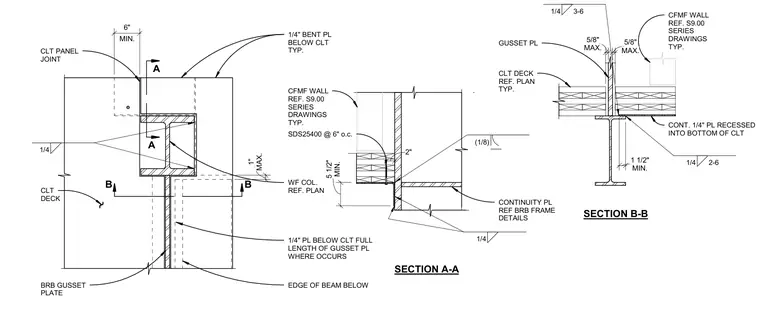

A structural buckling-restrained braced frame gusset plate connection is integrated with a cross-laminated timber deck and a wide-flange column. A one-quarter-inch bent plate is positioned below the cross-laminated timber deck typical condition, alongside a continuous one-quarter-inch plate recessed into the bottom of the timber deck for the full length of the gusset plate. Section A-A details the framing transition with a cold-formed metal framing wall anchored by SDS25400 screws at six inches on center with a minimum five-and-one-half-inch dimension. Section B-B details the cross-laminated timber deck bearing condition on the wide-flange steel beam with a continuity plate referenced from the braced frame details.
SECTION A-A SECTION B-B A A B B 1/4 (1/8) CFMF WALL REF. S9.00 SERIES DRAWINGS TYP. CLT DECK REF. PLAN TYP. GUSSET PL 1/4 3-6 1/4 2-6 WF COL. REF. PLAN 1/4" BENT PL BELOW CLT TYP. 1/4 BRB GUSSET PLATE CLT DECK CFMF WALL REF. S9.00 SERIES DRAWINGS TYP. CONTINUITY PL REF BRB FRAME DETAILS MIN. 5 1/2" 2" SDS25400 @ 6" o.c. MAX. 5/8" MAX. 5/8" MIN. 1 1/2" CONT. 1/4" PL RECESSED INTO BOTTOM OF CLT MAX. 1" EDGE OF BEAM BELOW 1/4" PL BELOW CLT FULL LENGTH OF GUSSET PL WHERE OCCURS MIN. 6" CLT PANEL JOINT
