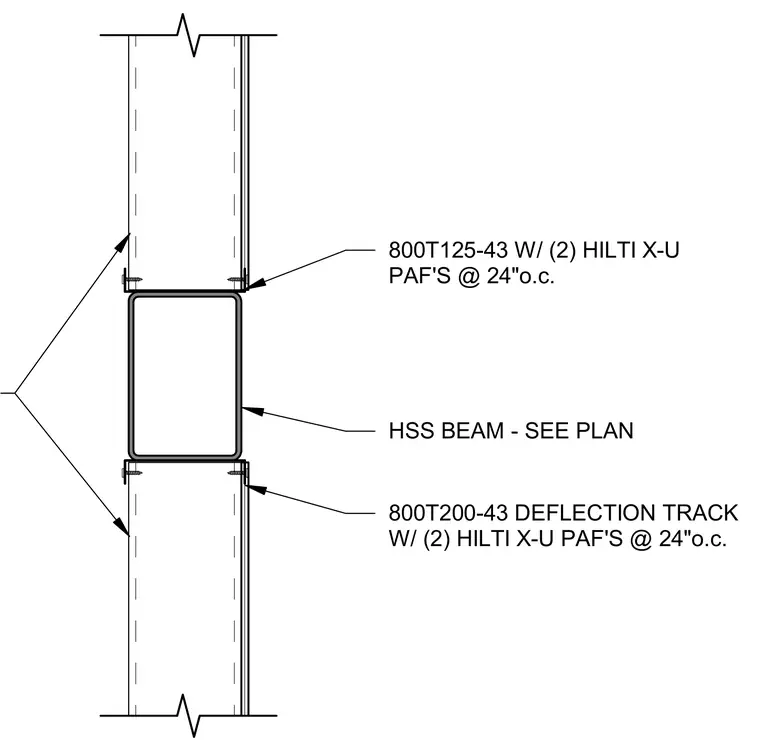

An 8-inch cold-formed steel stud framing assembly connects to an intermediate hollow structural section steel beam sized per plan. The top and bottom of the HSS beam interface with 800T125-43 and 800T200-43 deflection tracks respectively. Each track is fastened to the structural steel member using two Hilti X-U powder-actuated fasteners spaced at 24 inches on center.
800T125-43 W/ (2) HILTI X-U PAF'S @ 24"o.c. 800T200-43 DEFLECTION TRACK W/ (2) HILTI X-U PAF'S @ 24"o.c. HSS BEAM - SEE PLAN
