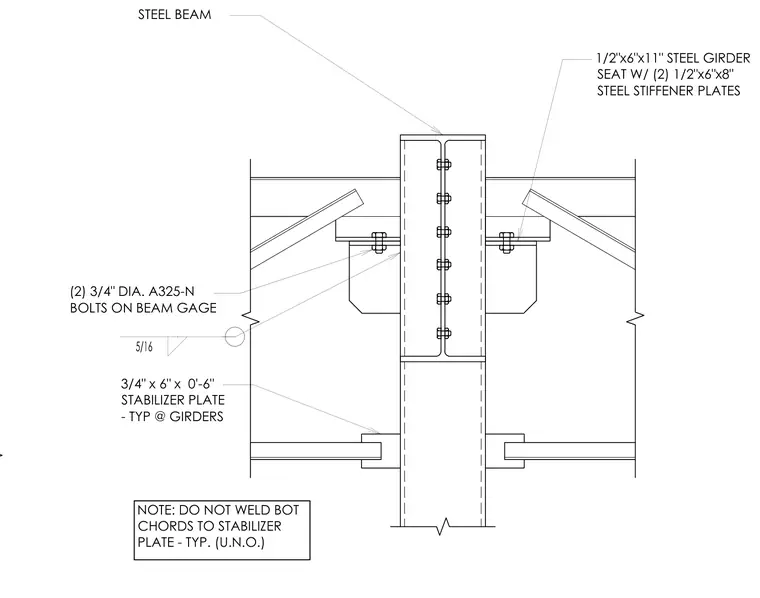

A steel beam frames into a column using a 1/2-inch by 6-inch by 11-inch steel girder seat reinforced with two 1/2-inch by 6-inch by 8-inch steel stiffener plates. The connection is secured with two 3/4-inch diameter A325-N bolts on the beam gauge. A 3/4-inch by 6-inch by 6-inch stabilizer plate is provided at the girders, with a note specifying that bottom chords are left unwelded to the stabilizer plate unless noted otherwise. A 5/16-inch fillet weld joins the assembly components.
NOTE: DO NOT WELD BOT CHORDS TO STABILIZER PLATE - TYP. (U.N.O.) STEEL BEAM 3/4" x 6" x 0'-6" STABILIZER PLATE - TYP @ GIRDERS (2) 3/4" DIA. A325-N BOLTS ON BEAM GAGE 1/2"x6"x11" STEEL GIRDER SEAT W/ (2) 1/2"x6"x8" STEEL STIFFENER PLATES
