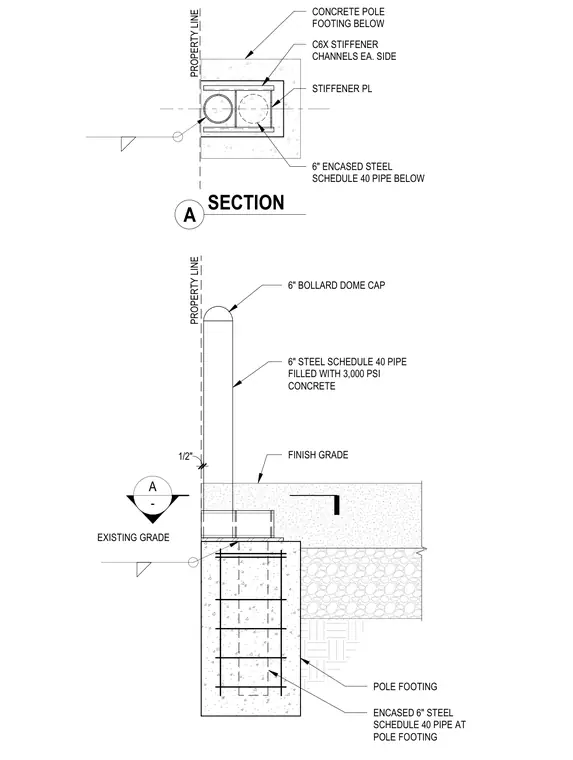

A six-inch steel Schedule 40 pipe is filled with 3,000 PSI concrete and topped with a six-inch bollard dome cap. The pipe extends down to a concrete pole footing, with C6X stiffener channels on each side and a stiffener plate. The entire footing assembly is positioned at the property line, extending below the finish grade and existing grade.
A - POLE FOOTING FINISH GRADE 6" STEEL SCHEDULE 40 PIPE FILLED WITH 3,000 PSI CONCRETE 6" BOLLARD DOME CAP 1/2" PROPERTY LINE EXISTING GRADE ENCASED 6" STEEL SCHEDULE 40 PIPE AT POLE FOOTING PROPERTY LINE C6X STIFFENER CHANNELS EA. SIDE CONCRETE POLE FOOTING BELOW STIFFENER PL 6" ENCASED STEEL SCHEDULE 40 PIPE BELOW A SECTION
