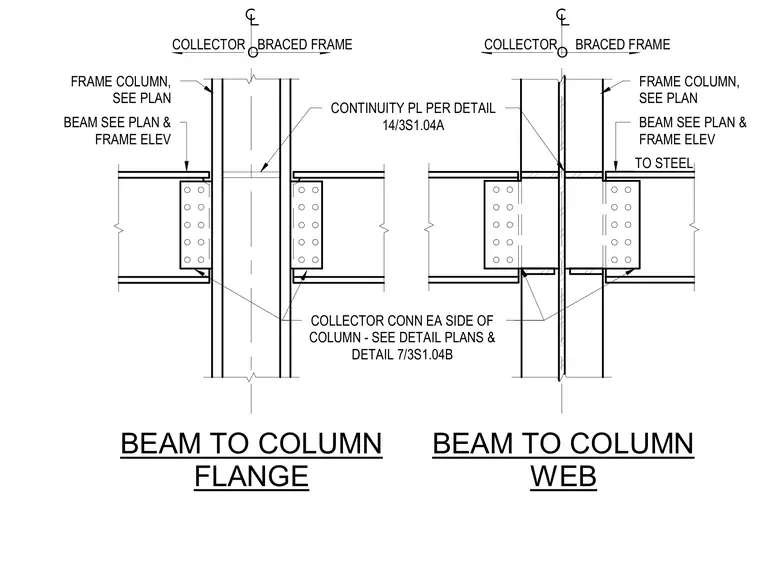

Beams frame into structural steel columns at both the column flange and column web in a buckling-restrained braced frame system. Continuity plates are provided at the beam flange elevations per structural details. Collector connections occur on each side of the column flange and web per the structural plans and framing elevations.
COLLECTOR CONN EA SIDE OF COLUMN - SEE DETAIL PLANS & DETAIL 7/3S1.04B BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL PER DETAIL 14/3S1.04A O BRACED FRAME COLLECTOR TO STEEL BEAM TO COLUMN FLANGE BEAM TO COLUMN WEB O BRACED FRAME COLLECTOR BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN
