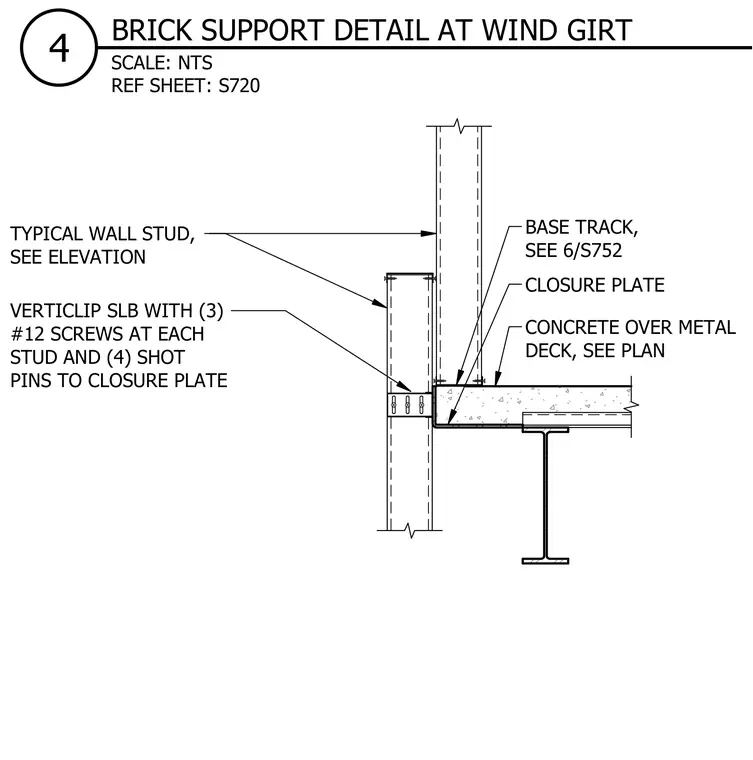

Brick support connection at a wind girt framing condition. A typical wall stud connects via a Verticlip SLB using three number 12 screws at each stud and four shot pins securing the closure plate. The closure plate bears against the concrete over metal deck supported by a steel beam and base track.
VERTICLIP SLB WITH (3) #12 SCREWS AT EACH STUD AND (4) SHOT PINS TO CLOSURE PLATE TYPICAL WALL STUD, SEE ELEVATION CLOSURE PLATE BASE TRACK, SEE 6/S752 CONCRETE OVER METAL DECK, SEE PLAN SCALE: NTS REF SHEET: S720 4 BRICK SUPPORT DETAIL AT WIND GIRT
