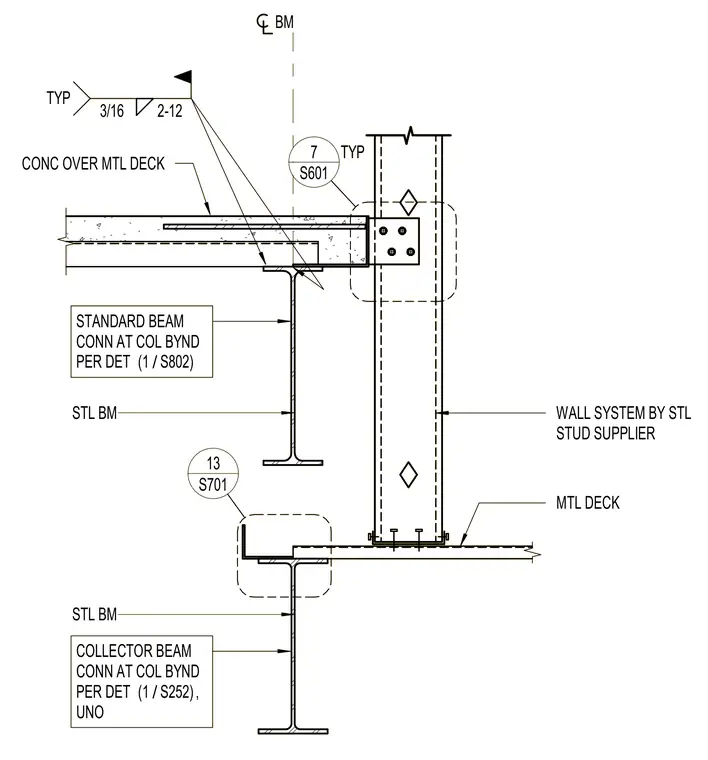

A concrete slab over metal deck bears on a steel beam with three-sixteenths inch fillet welds specified typically. A wall system provided by a steel stud supplier intersects at the column. Standard beam connections at the column beyond are detailed per sheet S802. A collector beam connection at the column beyond is detailed per sheet S252, unless noted otherwise.
STL BM BM 3/16 2-12 TYP S601 7 TYP S701 13 MTL DECK WALL SYSTEM BY STL STUD SUPPLIER STL BM CONC OVER MTL DECK COLLECTOR BEAM CONN AT COL BYND PER DET , UNO / (1 S252) STANDARD BEAM CONN AT COL BYND PER DET / (1 S802) STL BM BM 3/16 2-12 TYP S601 7 TYP S701 13 MTL DECK WALL SYSTEM BY STL STUD SUPPLIER STL BM CONC OVER MTL DECK COLLECTOR BEAM CONN AT COL BYND PER DET , UNO / (1 S252) STANDARD BEAM CONN AT COL BYND PER DET / (1 S802)
