Typical Concrete Pier Reinforcing Details

Elements

About this detail

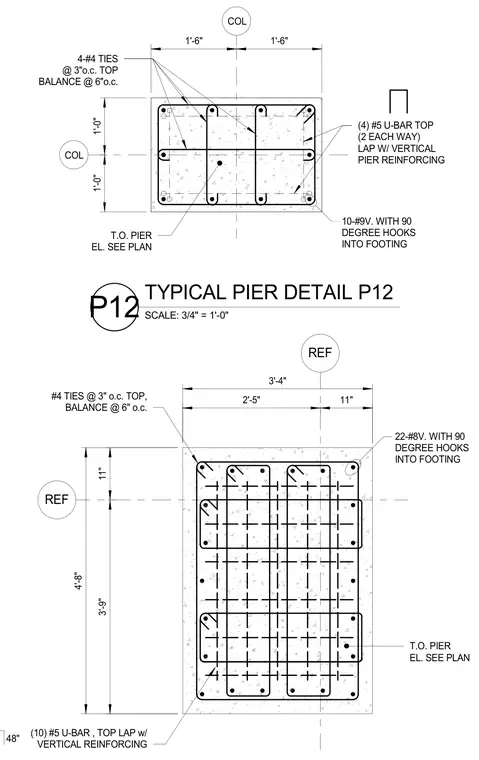

Two reinforced concrete pier configurations include rebar schedules. The first pier section measures 3 feet by 2 feet and is reinforced with ten number 9 vertical bars featuring 90-degree hooks into the footing, four number 4 ties spaced at 3 inches on center at the top and 6 inches on center for the balance, and four number 5 U-bars at the top placed two each way to lap with the vertical pier reinforcing. The second pier section measures 3 feet 4 inches by 4 feet 8 inches and contains twenty-two number 8 vertical bars with 90-degree hooks into the footing, number 4 ties spaced at 3 inches on center at the top and 6 inches on center for the balance, and ten number 5 U-bars at the top lapping with the vertical reinforcing. Both sections designate the top of pier elevation per plan.
