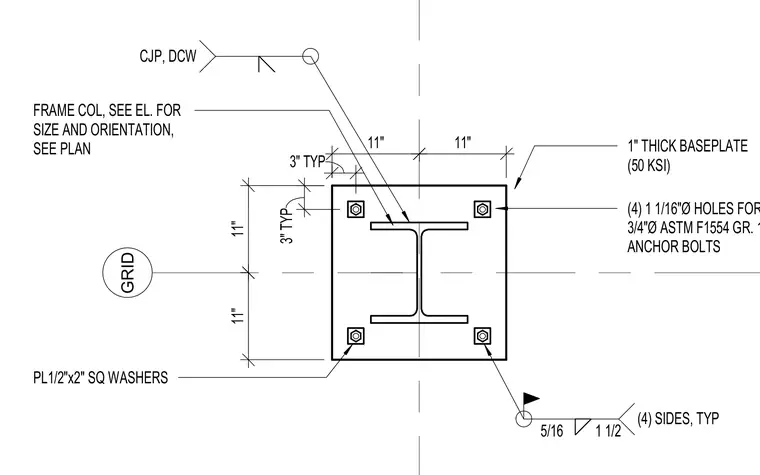

A structural steel frame column is welded to a one-inch thick fifty ksi base plate using a complete joint penetration weld with a two-sided contour weld designation. The plate features four one-and-one-sixteenth-inch diameter holes drilled for three-quarter-inch diameter ASTM F1554 Grade 105 anchor bolts. Half-inch by two-inch square washers are installed beneath the nut locations. Fillet welds of five-sixteenth-inch size are detailed on four sides typically.
GRID 11" 11" 3" TYP 11" FRAME COL, SEE EL. FOR SIZE AND ORIENTATION, SEE PLAN PL1/2"x2" SQ WASHERS 5/16 1 1/2 (4) SIDES, TYP CJP, DCW 3" TYP 11" 1" THICK BASEPLATE (50 KSI) (4) 1 1/16"Ø HOLES FOR 3/4"Ø ASTM F1554 GR. 105 ANCHOR BOLTS
