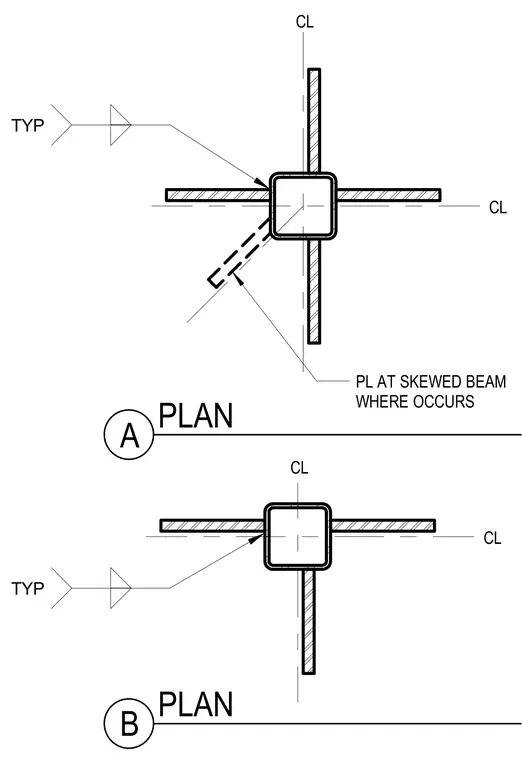

Wide flange steel beams frame into a hollow structural section column along orthogonal centerlines, establishing standard framing alignments. A specialized plate accommodates skewed beam framing conditions where angular alignment occurs. Centerline dimensions govern the layout of the framing members relative to the column face.
