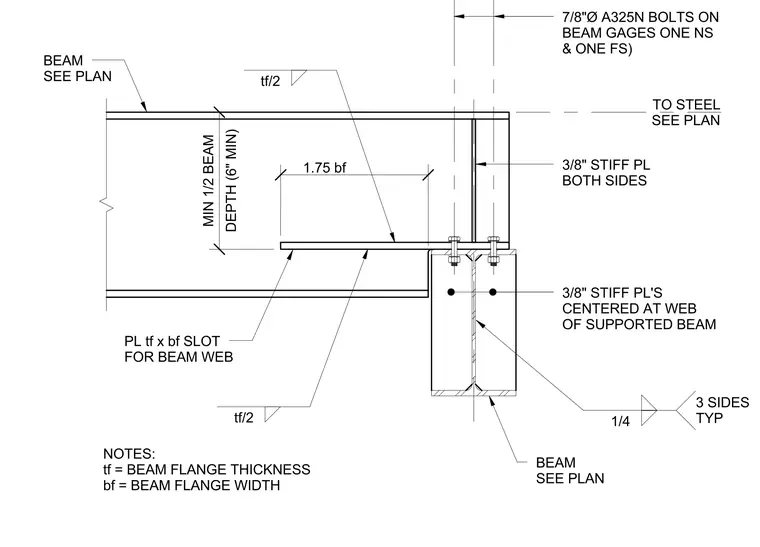

The supported steel beam frames into a supporting steel beam via a seated connection. The supported beam features a bottom flange cope sized per plan with a slot for the beam web, maintaining a minimum one-half beam depth of six inches. A seat plate welded to the supporting beam receives the supported beam bottom flange. Three-eighths inch stiffener plates are provided on both sides centered at the web of the supported beam, and three-eighths inch stiffener plates are welded to the support beam web. Connection is secured using seven-eighths inch diameter A325N bolts on beam gages, with one near-side and one far-side bolt. Fillet welds of one-quarter inch size are applied on three sides typically.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN BEAM SEE PLAN 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP tf/2
