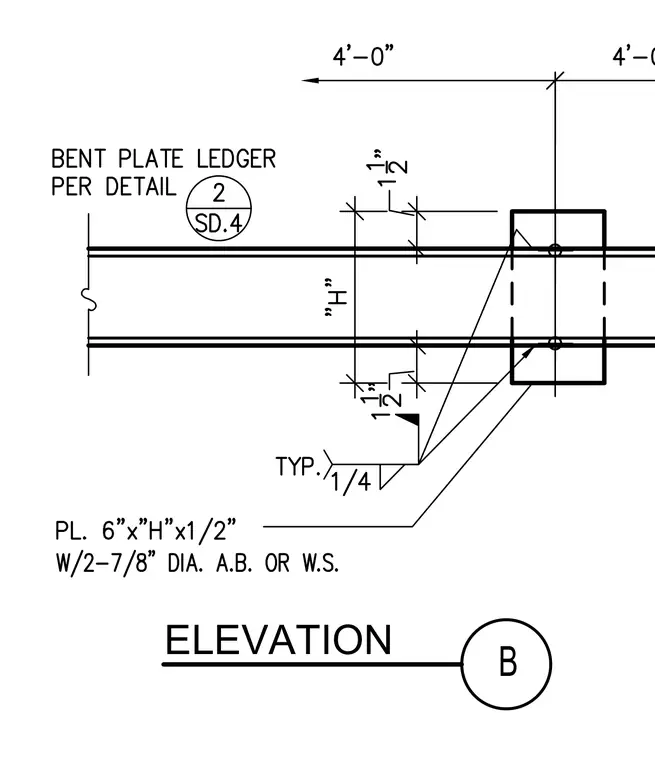

A bent plate ledger per detail 2 SD.4 is connected using a six-inch plate with a height matching dimension H and a thickness of one-half inch. The assembly is secured with two seven-eighths-inch diameter anchor bolts or welds. A typical quarter-inch fillet weld connects the plate assembly. Dimensions include one-half-inch clearances and a spacing of four feet.
