Roof Overhang Structure at Exterior Wall Connection

Materials

Steel Timber / Wood

Elements

Beams Walls Windows Curtain Walls Roofs Decks Arches Entrances Connections / Plates

Connections

HSS Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

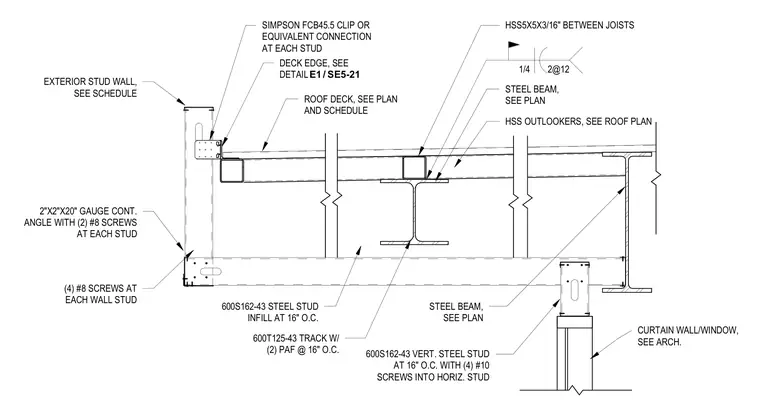

A roof overhang connection is supported by steel beams and hollow structural section outlookers. The exterior stud wall consists of 600S162-43 vertical steel studs spaced at sixteen inches on center, tied to a 600T125-43 track with two powder-actuated fasteners at sixteen inches on center. A continuous two-by-two-inch twenty-gauge angle is fastened to each stud using two number eight screws, alongside a Simpson FCB45.5 clip or equivalent connection at each stud location. HSS5x5x3/16-inch members span between joists with a quarter-inch fillet weld at twelve inches on center. Infill framing utilizes 600S162-43 steel studs at sixteen inches on center secured with four number eight screws at each wall stud, while vertical studs connect into the horizontal track using four number ten screws.
