Structural · S-R6T5B

Provide Pl 1/4"X5"Xcont

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Decks Arches Bracing

Connections

Bracing Connection

About this detail

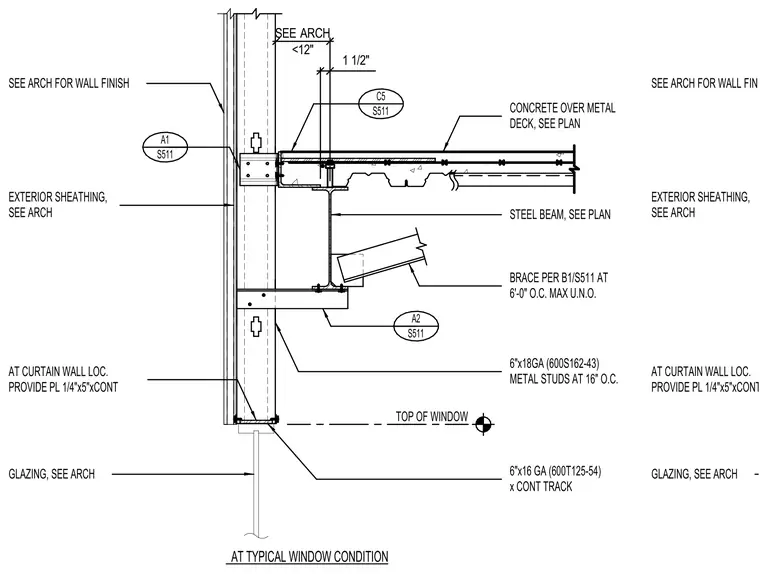

A concrete floor slab over a metal deck is supported by a steel beam sized per plan. Cold-formed metal studs measuring 6 inches by 18 gauge (600S162-43) are spaced at 16 inches on center, running past the floor edge. At the typical window condition, a continuous 6-inch by 16-gauge track (600T125-54) forms the window head below the glazing. A continuous 1/4-inch by 5-inch plate is provided at curtain wall locations. Diagonal bracing is installed per detail B1/S511 at 6 feet zero inches on center maximum unless noted otherwise. Exterior sheathing and wall finishes are provided per architectural drawings.
