Typical Panel Reinforcing Placement Diagrams

Materials

Elements

About this detail

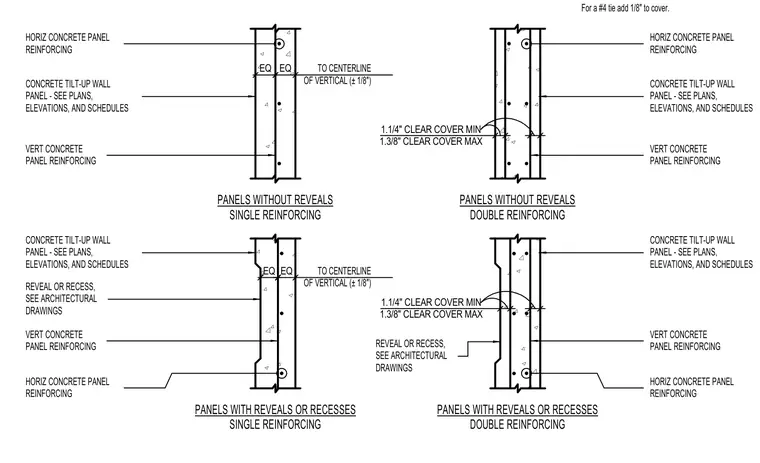

Typical concrete tilt-up wall panels feature horizontal and vertical reinforcing steel arranged in single or double layers depending on design requirements. Panels without reveals maintain standard clear cover tolerances, while panels with architectural reveals or recesses require adjusted positioning of the reinforcing steel as coordinated with architectural drawings. Clear cover ranges from a minimum of one and one-fourth inches to a maximum of one and three-eighths inches to the centerline of vertical reinforcing, with an added eighth of an inch for four-bar ties. Equal spacing dimensions govern the placement of vertical reinforcing bars across the wall panel cross section.
