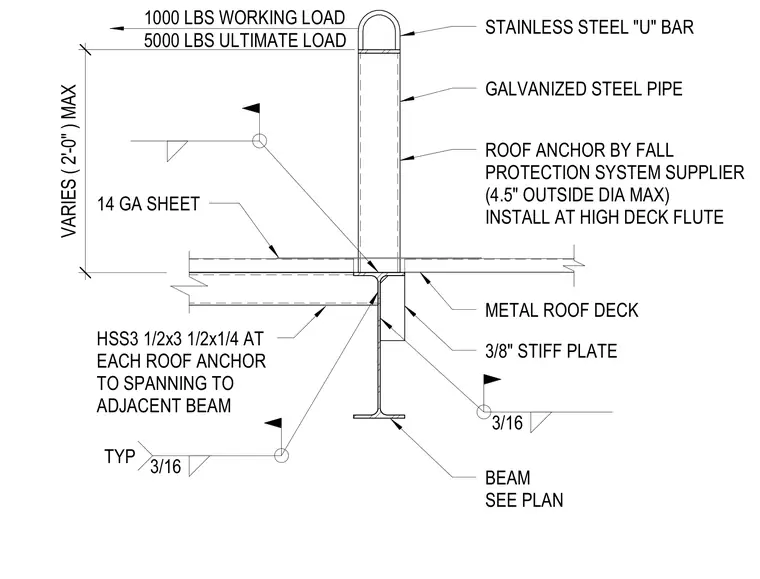

A galvanized steel pipe roof anchor with a stainless steel "U" bar is installed at the high flute of a metal roof deck, bearing down to a structural steel beam sized per plan. The anchor assembly has a maximum working load of 1,000 pounds and an ultimate load of 5,000 pounds, with a variable height up to 2'-0" maximum above the deck. A hollow structural section measuring 3-1/2" by 3-1/2" by 1/4" spans to the adjacent beam at each roof anchor. A 3/8" stiffener plate and a 14-gauge sheet reinforce the connection, secured with typical 3/16" fillet welds.
VARIES ( 2'-0" ) MAX 1000 LBS WORKING LOAD 5000 LBS ULTIMATE LOAD STAINLESS STEEL "U" BAR GALVANIZED STEEL PIPE ROOF ANCHOR BY FALL PROTECTION SYSTEM SUPPLIER (4.5" OUTSIDE DIA MAX) INSTALL AT HIGH DECK FLUTE METAL ROOF DECK BEAM SEE PLAN HSS3 1/2x3 1/2x1/4 AT EACH ROOF ANCHOR TO SPANNING TO ADJACENT BEAM 14 GA SHEET 3/8" STIFF PLATE 3/16 3/16 TYP
