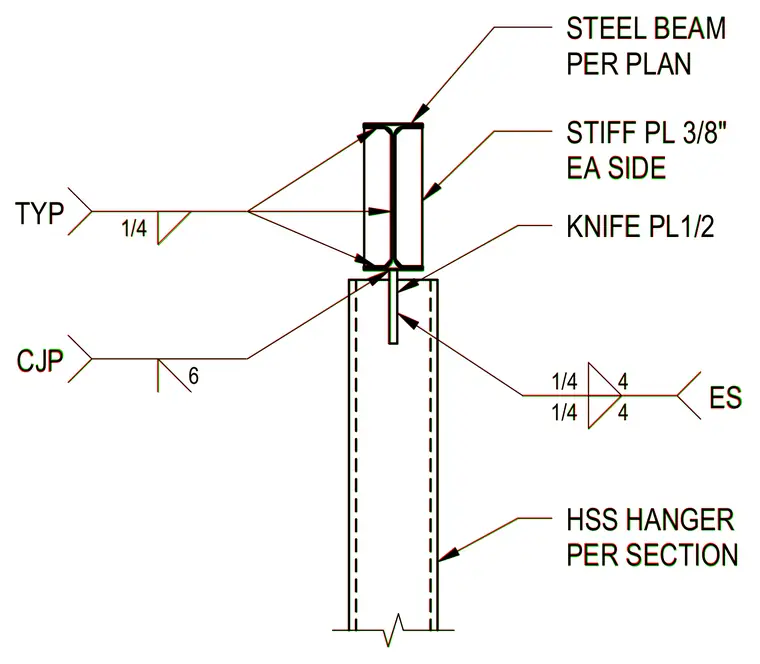

A steel beam sized per plan connects to a hollow structural section hanger using a one-half inch knife plate slotted and welded into the assembly. Three-eighths inch stiffener plates are welded to each side of the beam web with one-quarter inch fillet welds. The knife plate is secured to the hollow structural section hanger with a complete joint penetration weld. Additional fillet welds secure the connection assembly as detailed.
HSS HANGER PER SECTION STEEL BEAM PER PLAN KNIFE PL1/2 STIFF PL 3/8" EA SIDE ES 4 4 1/4 1/4 CJP 6 TYP 1/4 HSS HANGER PER SECTION STEEL BEAM PER PLAN KNIFE PL1/2 STIFF PL 3/8" EA SIDE ES 4 4 1/4 1/4 CJP 6 TYP 1/4
