Structural · S-R5XTB

Deck Support at Rotated Beam

Elements

About this detail

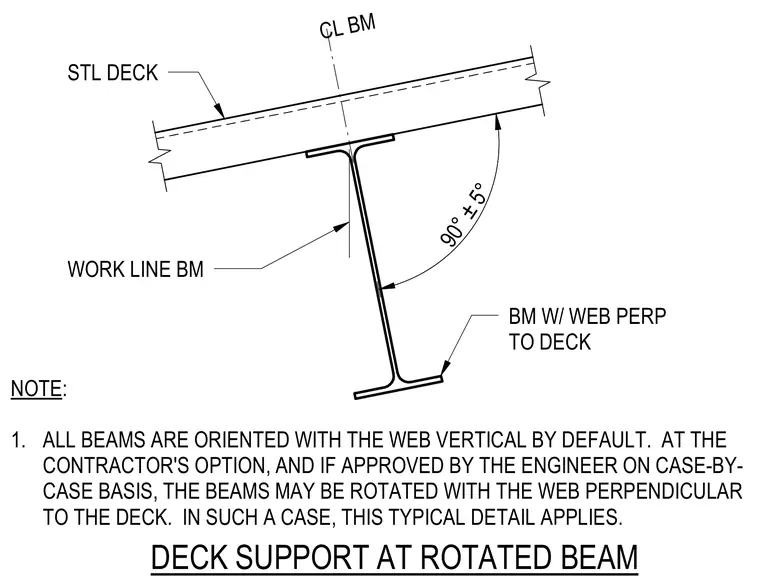

A structural steel beam supports a steel deck with its web oriented perpendicular to the deck rather than vertical by default. The beam work line aligns with the center line of the beam, and the angle between the beam web and the deck is maintained at ninety degrees plus or minus five degrees. All beams are oriented with the web vertical by default, but at the contractor's option and with engineer approval on a case-by-case basis, beams may be rotated to follow this typical detail.
