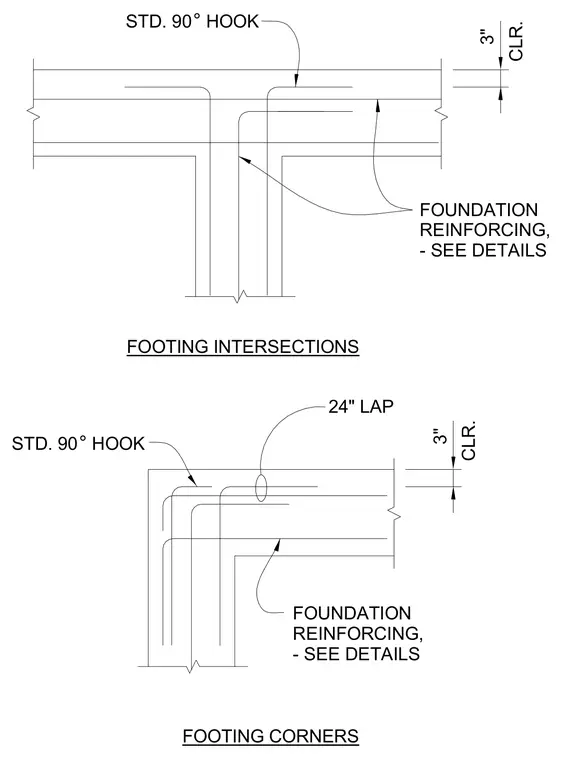

Foundation concrete footings feature intersecting and corner rebar layouts with standard ninety-degree hooks for anchorage. Longitudinal reinforcing bars incorporate a twenty-four-inch lap splice at the corners. A three-inch concrete clearance is maintained for the reinforcement throughout the assembly.
FOOTING INTERSECTIONS STD. 90 ° HOOK FOOTING CORNERS 24" LAP 3" CLR. STD. 90 ° HOOK FOUNDATION REINFORCING, - SEE DETAILS FOUNDATION REINFORCING, - SEE DETAILS 3" CLR.
