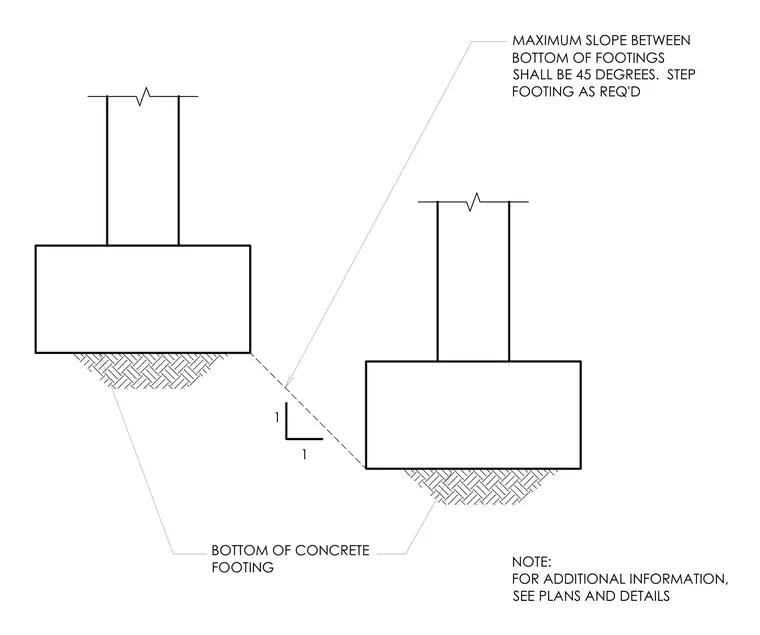

The maximum slope between the bottom of adjacent concrete footings shall be forty-five degrees. Step footings as required to maintain the soil bearing plane.
MAXIMUM SLOPE BETWEEN BOTTOM OF FOOTINGS SHALL BE 45 DEGREES. STEP FOOTING AS REQ'D BOTTOM OF CONCRETE FOOTING 1 1 NOTE: FOR ADDITIONAL INFORMATION, SEE PLANS AND DETAILS
