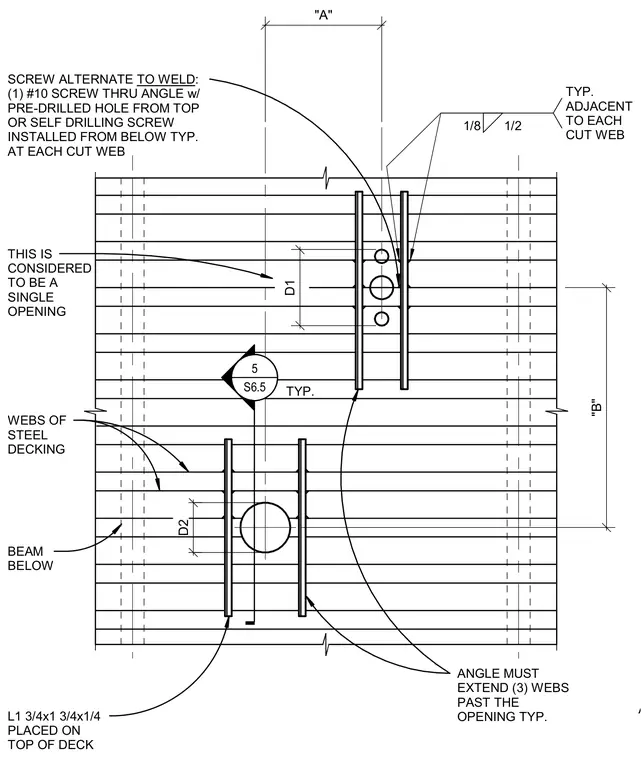

An angle measuring 1 3/4 inches by 1 3/4 inches by 1/4 inch is placed on top of the steel deck spanning across cut webs adjacent to a floor or roof opening. The reinforcing angle must extend three webs past the opening typically on each side. Connections are made using a one-eighth-inch by one-half-inch weld adjacent to each cut web typically. As an alternate to welding, one number 10 screw through the angle with a pre-drilled hole from the top or a self-drilling screw installed from below is used typically at each cut web.
THIS IS CONSIDERED TO BE A SINGLE OPENING WEBS OF STEEL DECKING BEAM BELOW ANGLE MUST EXTEND (3) WEBS PAST THE OPENING TYP. SCREW ALTERNATE TO WELD: (1) #10 SCREW THRU ANGLE w/ PRE-DRILLED HOLE FROM TOP OR SELF DRILLING SCREW INSTALLED FROM BELOW TYP. AT EACH CUT WEB L1 3/4x1 3/4x1/4 PLACED ON TOP OF DECK "A" D1 D2 "B" 1/8 1/2 TYP. ADJACENT TO EACH CUT WEB TYP. 5 S6.5 _____ ADJACENT
