A 120mm precast concrete cladding panel features a core drilled opening for a sacrificial drain outlet. Concrete nibs are provided per plan and architectural specifications to support the assembly.

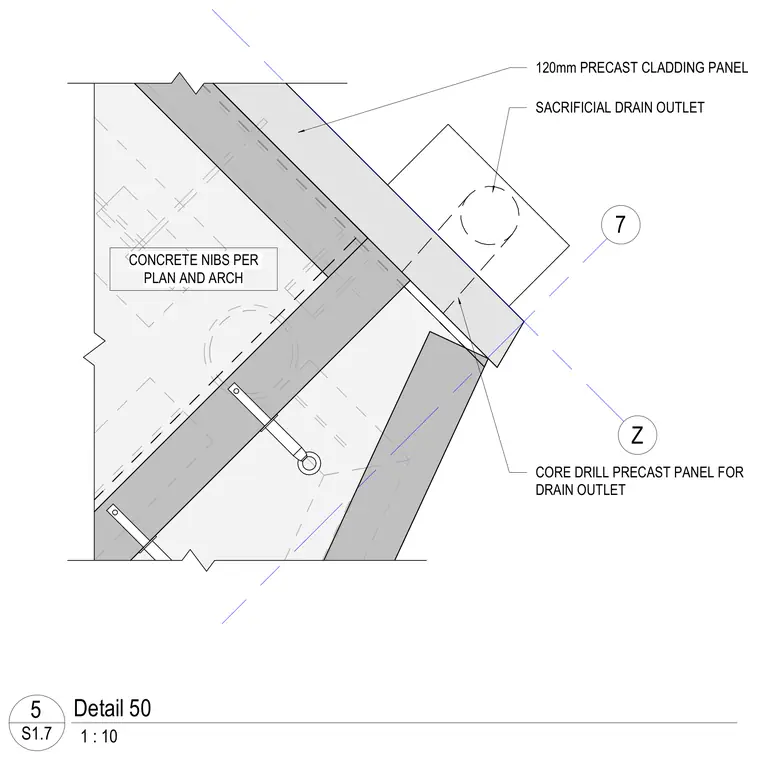

Z 7 CONCRETE NIBS PER PLAN AND ARCH SACRIFICIAL DRAIN OUTLET 120mm PRECAST CLADDING PANEL CORE DRILL PRECAST PANEL FOR DRAIN OUTLET 1 : 10 S1.7 Detail 50 5
