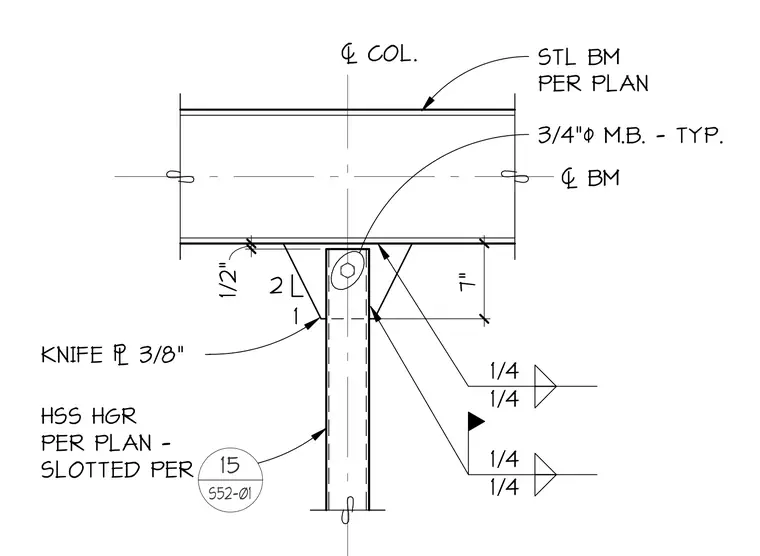

A hollow structural section hanger connects to a supporting steel beam sized per plan. The connection utilizes a three-eighths-inch thick knife plate welded to the steel beam with quarter-inch fillet welds. The hanger is slotted to fit over the knife plate and secured with typical three-quarter-inch diameter machine bolts.
HSS HGR PER PLAN - SLOTTED PER 1/4 1/4 7" 1/4 1/4 1/2" . COL. STL BM PER PLAN 3/4"0 M.B. - TYP. KNIFE $ 3/8" 1 2 . BM 15 S52-01
