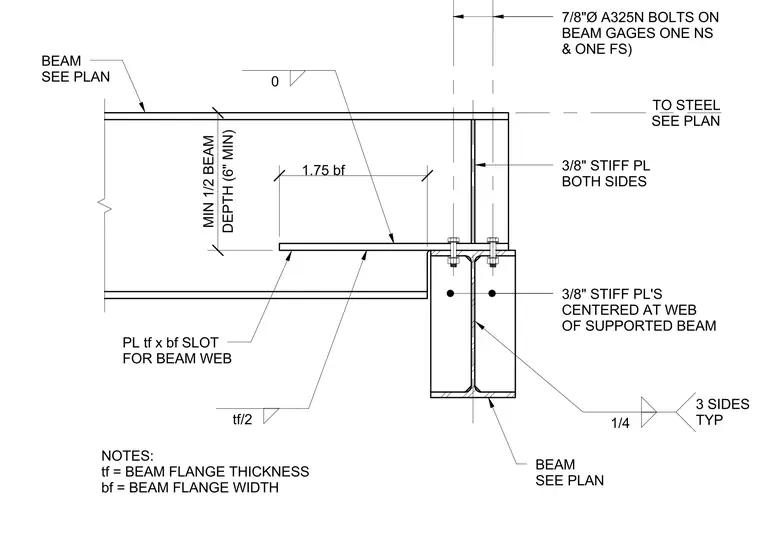

A supported steel beam frames into a supporting steel beam utilizing a seated connection configuration. A plate sized to the beam flange thickness by the beam flange width with a slot for the beam web acts as the seat, supported by three-eighth-inch stiffener plates on both sides. Three-eighth-inch stiffener plates are centered at the web of the supported beam. Seven-eighth-inch diameter A325-N bolts are installed on beam gauges, with one near-side and one far-side. Fillet welds of one-quarter-inch size are applied to three sides typically.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN BEAM SEE PLAN 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP 0
