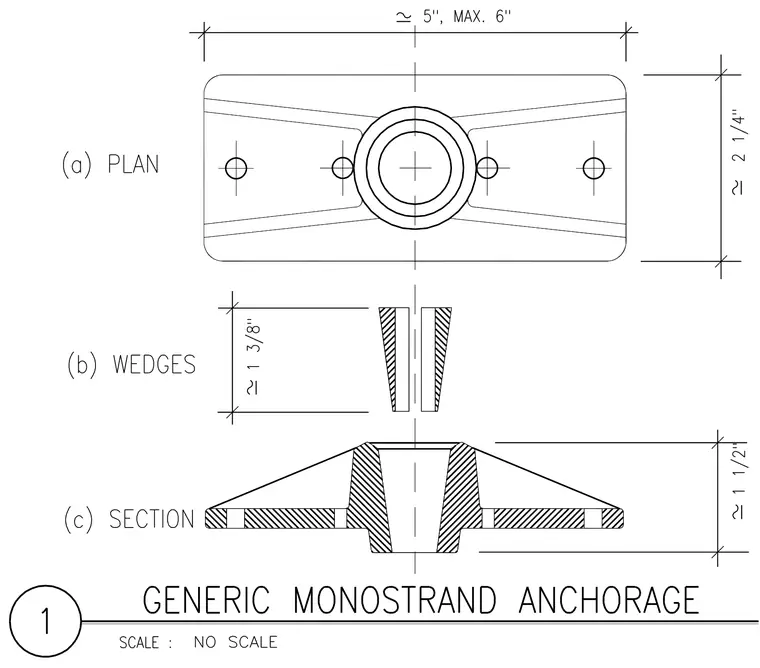

A generic monostrand anchorage assembly features a cast or forged bearing plate with a central tapered opening and four auxiliary mounting holes. The wedges are approximately 1-3/8 inches long and fit into the tapered receiver of the anchorage casting. The plan view shows a total approximate width of 5 to 6 inches and a height of 2-1/4 inches. The cross-section view details the overall thickness of approximately 1-1/2 inches including the protruding central collar.
