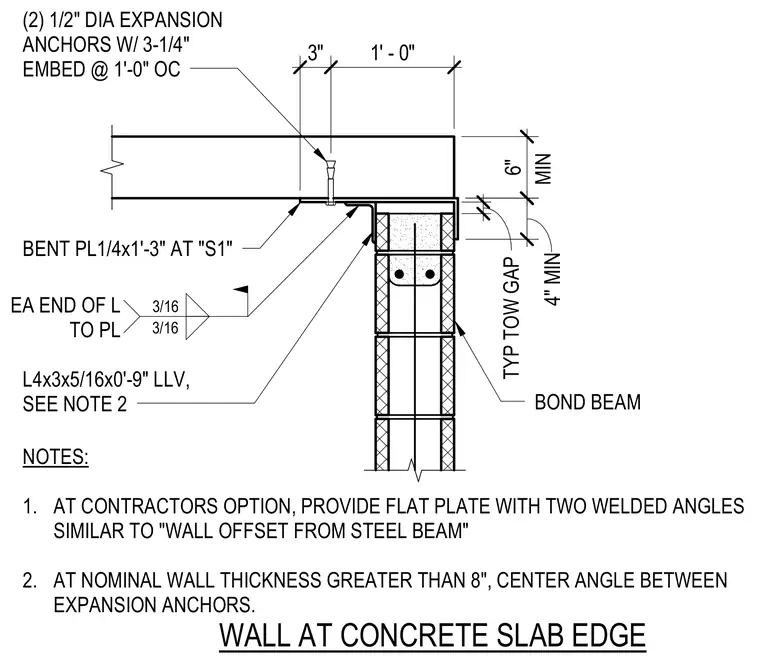

A concrete slab edge connects to a masonry wall featuring a bond beam using a bent plate and structural steel angle. The assembly is anchored to the underside of the concrete slab with two half-inch diameter expansion anchors with three and a quarter inch embedment spaced at one foot on center. A four-inch minimum bond beam supports an L4x3x5/16 by nine-inch long angle, welded to the bent plate with three-sixteenth-inch fillet welds at each end. A typical top-of-wall gap is maintained between the slab and masonry, and notes permit an alternate flat plate with two welded angles.
L4x3x5/16x0'-9" LLV, SEE NOTE 2 BENT PL1/4x1'-3" AT "S1" (2) 1/2" DIA EXPANSION ANCHORS W/ 3-1/4" EMBED @ 1'-0" OC WALL AT CONCRETE SLAB EDGE 3" 1' - 0" 4" MIN 6" BOND BEAM 1 1/8" TYP TOW GAP MIN EA END OF L TO PL 3/16 3/16 NOTES: 1. AT CONTRACTORS OPTION, PROVIDE FLAT PLATE WITH TWO WELDED ANGLES SIMILAR TO "WALL OFFSET FROM STEEL BEAM" 2. AT NOMINAL WALL THICKNESS GREATER THAN 8", CENTER ANGLE BETWEEN EXPANSION ANCHORS.
