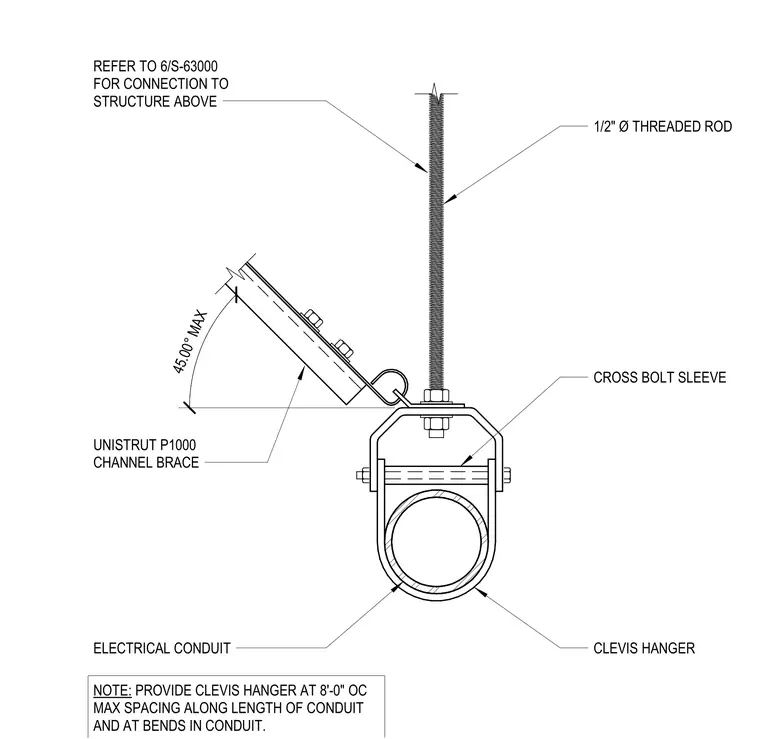

A clevis hanger supports the electrical conduit, suspended from a one-half inch diameter threaded rod anchored to the structure per detail 6/S-63000. A cross bolt sleeve secures the conduit within the hanger. A Unistrut P1000 channel brace provides lateral stability at a maximum angle of forty-five degrees. Clevis hangers require a maximum spacing of eight feet on center along the conduit length and at all conduit bends.
Text on the drawing
CLEVIS HANGER ELECTRICAL CONDUIT CROSS BOLT SLEEVE 1/2" Ø THREADED ROD REFER TO 6/S-63000 FOR CONNECTION TO STRUCTURE ABOVE NOTE: PROVIDE CLEVIS HANGER AT 8'-0" OC MAX SPACING ALONG LENGTH OF CONDUIT AND AT BENDS IN CONDUIT. UNISTRUT P1000 CHANNEL BRACE 45.00° MAX
