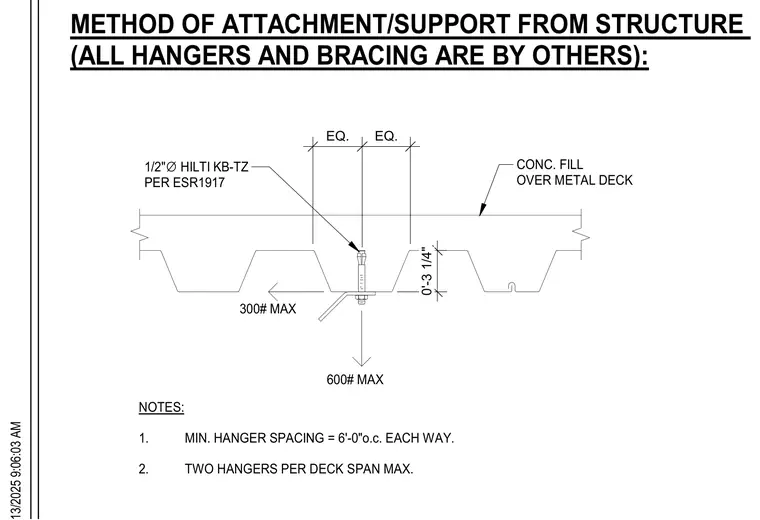

An expansion anchor secures a suspended load to the underside of a concrete fill over metal deck assembly. A one-half-inch diameter Hilti KB-TZ expansion anchor, installed per ESR-1917, fastens through the lower flute of the metal deck. Maximum allowable loads are three hundred pounds and six00 pounds as indicated, with a minimum hanger spacing of six feet on center each way and a maximum of two hangers per deck span. All hangers and bracing are provided by others.
0'-3 1/4" EQ. EQ. CONC. FILL OVER METAL DECK 1/2" ∅ HILTI KB-TZ PER ESR1917 300# MAX 600# MAX NOTES: 1. MIN. HANGER SPACING = 6'-0"o.c. EACH WAY. 2. TWO HANGERS PER DECK SPAN MAX. METHOD OF ATTACHMENT/SUPPORT FROM STRUCTURE (ALL HANGERS AND BRACING ARE BY OTHERS):
