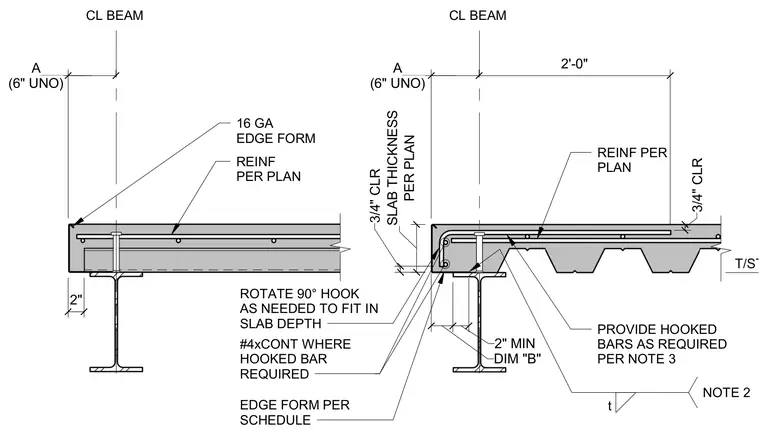

Concrete slab edge conditions bear on structural steel beams. The assembly includes reinforcing bars per plan with hooked bars provided as required, maintained with a three-quarters inch clearance. A sixteen-gauge edge form is detailed at the perimeter with a two-inch minimum dimension. Hooked bars may be rotated ninety degrees as needed to fit within the slab depth, accompanied by number four continuous reinforcing where required.
CL BEAM CL BEAM REINF PER PLAN PROVIDE HOOKED BARS AS REQUIRED PER NOTE 3 #4xCONT WHERE HOOKED BAR REQUIRED EDGE FORM PER SCHEDULE REINF PER PLAN (6" UNO) A 2'-0" 3/4" CLR t NOTE 2 DIM "B" 2" MIN ROTATE 90° HOOK AS NEEDED TO FIT IN SLAB DEPTH (6" UNO) A 16 GA EDGE FORM 2" 3/4" CLR PER PLAN SLAB THICKNESS
