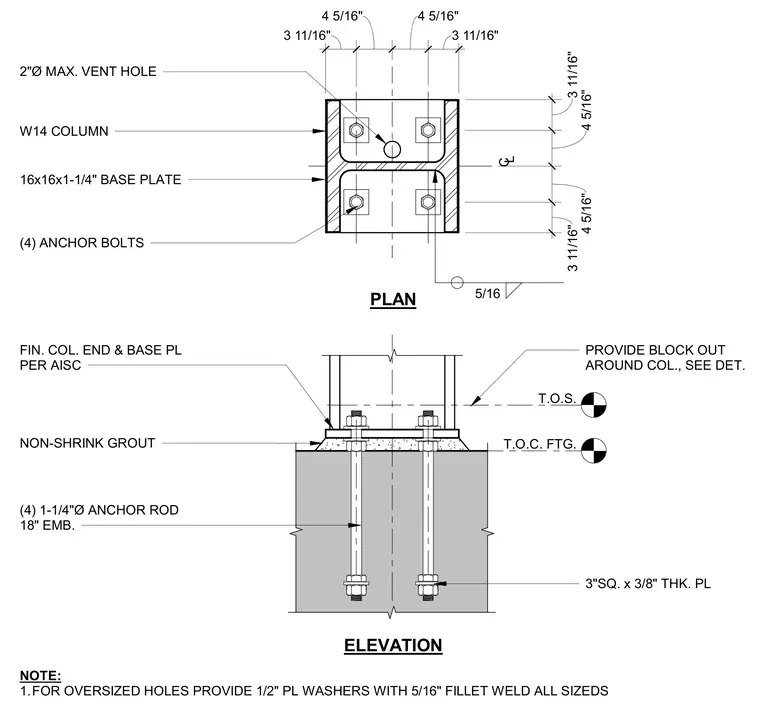

A W14 steel column base connection is supported by a concrete footing. The assembly features a 16x16x1-1/4 inch base plate welded to the column with a 5/16 inch fillet weld and secured by four 1-1/4 inch diameter anchor rods with an 18 inch embedment length. Each anchor rod includes a 3 inch square by 3/8 inch thick plate washer at the embedded end. Non-shrink grout is placed beneath the base plate, and a block out is provided around the column per the elevation plan. A 2 inch diameter maximum vent hole is centered in the base plate.
FIN. COL. END & BASE PL PER AISC NON-SHRINK GROUT PROVIDE BLOCK OUT AROUND COL., SEE DET. ELEVATION PLAN 2"Ø MAX. VENT HOLE (4) ANCHOR BOLTS W14 COLUMN 16x16x1-1/4" BASE PLATE 5/16 T.O.C. FTG. CL T.O.S. (4) 1-1/4"Ø ANCHOR ROD 18" EMB. 3"SQ. x 3/8" THK. PL NOTE: 1.FOR OVERSIZED HOLES PROVIDE 1/2" PL WASHERS WITH 5/16" FILLET WELD ALL SIZEDS 3 11/16" 4 5/16" 4 5/16" 3 11/16" 3 11/16" 4 5/16" 4 5/16" 3 11/16"
