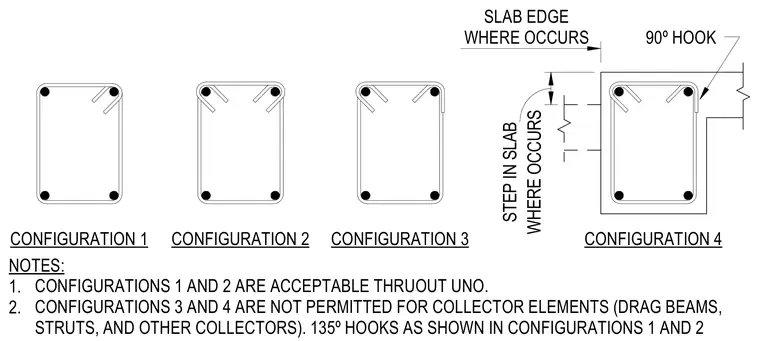

Four stirrup configurations illustrate standard detailing requirements for concrete beams and collector elements. Configurations 1 and 2 utilize 135-degree seismic hooks and are acceptable throughout unless noted otherwise. Configurations 3 and 4 are prohibited for collector elements such as drag beams, struts, and other collectors. Configuration 4 shows a 90-degree hook adjacent to a slab edge and step in slab where applicable.
NOTES: 1. 2. CONFIGURATIONS 1 AND 2 ARE ACCEPTABLE THRUOUT UNO. CONFIGURATIONS 3 AND 4 ARE NOT PERMITTED FOR COLLECTOR ELEMENTS (DRAG BEAMS, STRUTS, AND OTHER COLLECTORS). 135º HOOKS AS SHOWN IN CONFIGURATIONS 1 AND 2 CONFIGURATION 4 CONFIGURATION 2 CONFIGURATION 1 WHERE OCCURS STEP IN SLAB SLAB EDGE WHERE OCCURS CONFIGURATION 3 90º HOOK
