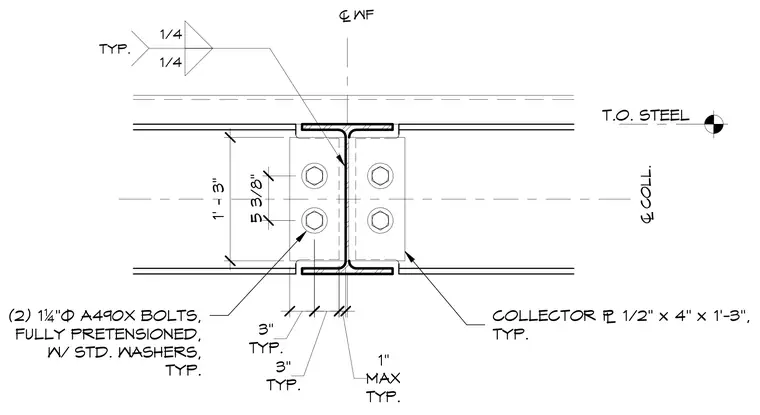

A wide flange steel collector connects through a continuous wide flange girder using a pair of half-inch by four-inch by one-foot-three-inch collector plates welded to the web. Two one-and-one-quarter-inch diameter A490X fully pretensioned bolts with standard washers secure each side of the connection. The plates measure one foot three inches in height with a five-and-three-eighths-inch bolt spacing. A quarter-inch fillet weld joins the components with a one-inch maximum typical gap.
® WF T.O. STEEL ® COLL. (2) 1¼"Ø A490X BOLTS, FULLY PRETENSIONED, W/ STD. WASHERS, TYP. 5 3/8" TYP. 3" TYP. 1" MAX TYP. 3" 1/4 1/4 TYP. 1' - 3" COLLECTOR ¯ 1/2" x 4" x 1'-3", TYP.
