Verticlip SL Drift Clip Connection at Concrete Slab Edge

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Decks Connections / Plates

Connections

Deck Attachment

About this detail

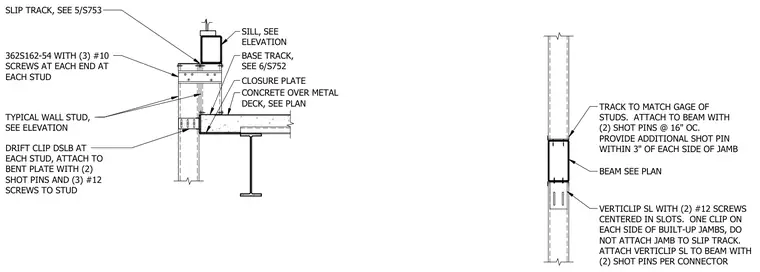

A cold-formed steel framing connection at a concrete-filled metal deck slab edge. A typical wall stud connects to a slip track matching the stud gauge, which attaches to the supporting beam with two shot pins spaced at sixteen inches on center. A drift clip type DSLB secures each stud to a bent plate using two shot pins and three number twelve screws into the stud. Built-up jambs receive one Verticlip SL clip on each side with two number twelve screws centered in the slots, and remain unattached to the slip track to allow vertical movement. Additional shot pins are required within three inches of each side of the jamb beam. A closure plate and sill condition close out the assembly above the slab.
