An HSS8x8 girt connects to the underside of a sloped wide flange beam using a half-inch by six-inch by zero-foot-six-inch plate with standard holes and two seven-eighths-inch diameter A325 bolts on each side. Half-inch stiffener plates with standard holes are welded to the wide flange beam web with typical quarter-inch fillet welds. A continuous three-eighths-inch bent plate ties into the top flange of the wide flange beam. Five-sixteenths fillet welds are specified on both sides of the main connection plate. A roof deck bears on top of the wide flange beam assembly, positioned per structural plans.

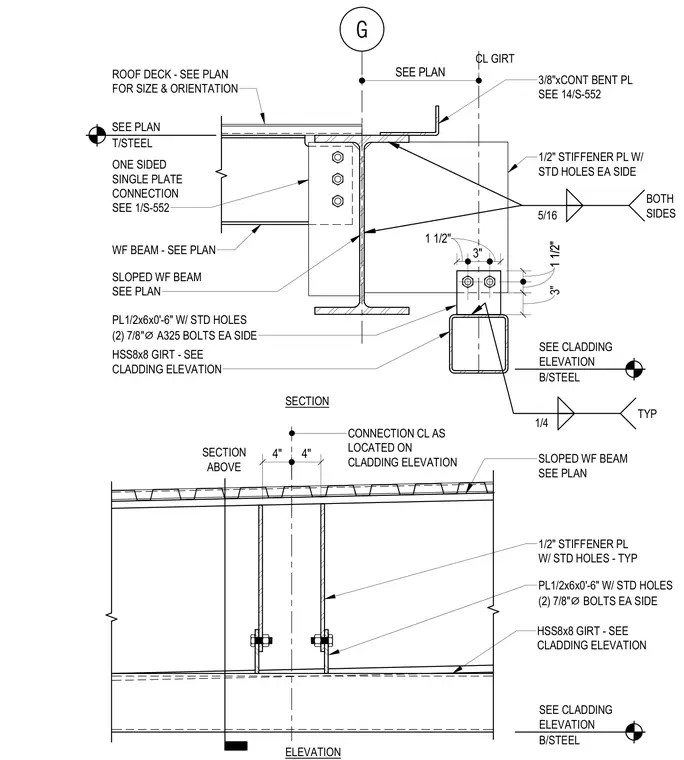

G SEE PLAN CL GIRT T/STEEL SEE PLAN B/STEEL SEE CLADDING ELEVATION 5/16 BOTH SIDES 3/8"xCONT BENT PL SEE 14/S-552 ROOF DECK - SEE PLAN FOR SIZE & ORIENTATION ONE SIDED SINGLE PLATE CONNECTION SEE 1/S-552 1 1/2" 3" 1 1/2" 1 1/2" 1 1/2" PL1/2x6x0'-6" W/ STD HOLES (2) 7/8" ⌀ A325 BOLTS EA SIDE 1/2" STIFFENER PL W/ STD HOLES EA SIDE 1/4 TYP SECTION ABOVE HSS8x8 GIRT - SEE CLADDING ELEVATION HSS8x8 GIRT - SEE CLADDING ELEVATION B/STEEL SEE CLADDING ELEVATION PL1/2x6x0'-6" W/ STD HOLES (2) 7/8" ⌀ BOLTS EA SIDE 1/2" STIFFENER PL W/ STD HOLES - TYP WF BEAM - SEE PLAN 4" 4" SLOPED WF BEAM SEE PLAN SLOPED WF BEAM SEE PLAN SECTION ELEVATION 3" CONNECTION CL AS LOCATED ON CLADDING ELEVATION
