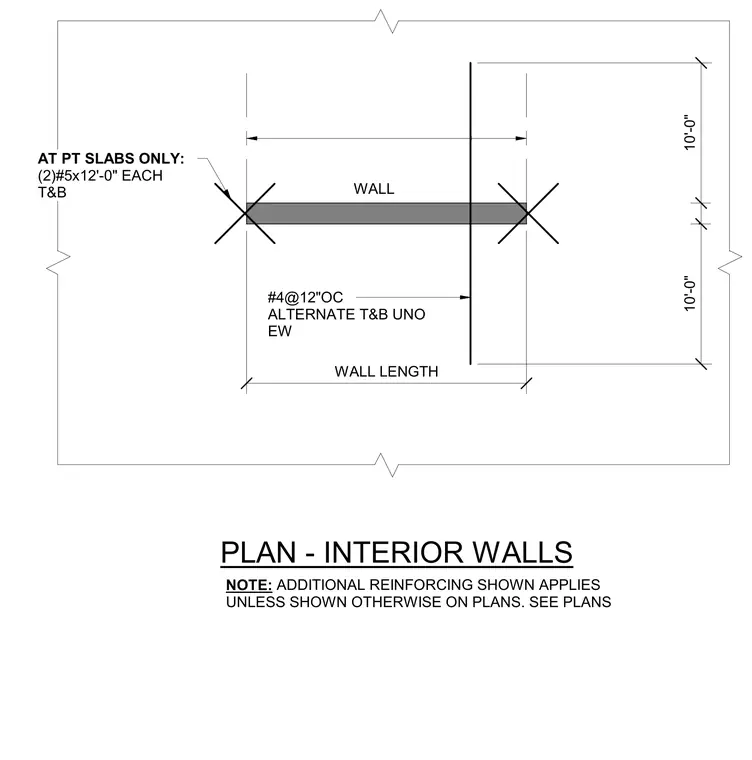

Interior wall reinforcement plan detailing main wall reinforcing with number four bars at twelve inches on center alternating top and bottom each way unless noted otherwise. Post-tensioned slabs receive two number five bars twelve feet long at each top and bottom along the wall length.
AT PT SLABS ONLY: (2)#5x12'-0" EACH T&B WALL LENGTH PLAN - INTERIOR WALLS #4@12"OC ALTERNATE T&B UNO EW WALL 10'-0" . 10'-0" NOTE: ADDITIONAL REINFORCING SHOWN APPLIES UNLESS SHOWN OTHERWISE ON PLANS. SEE PLANS O
