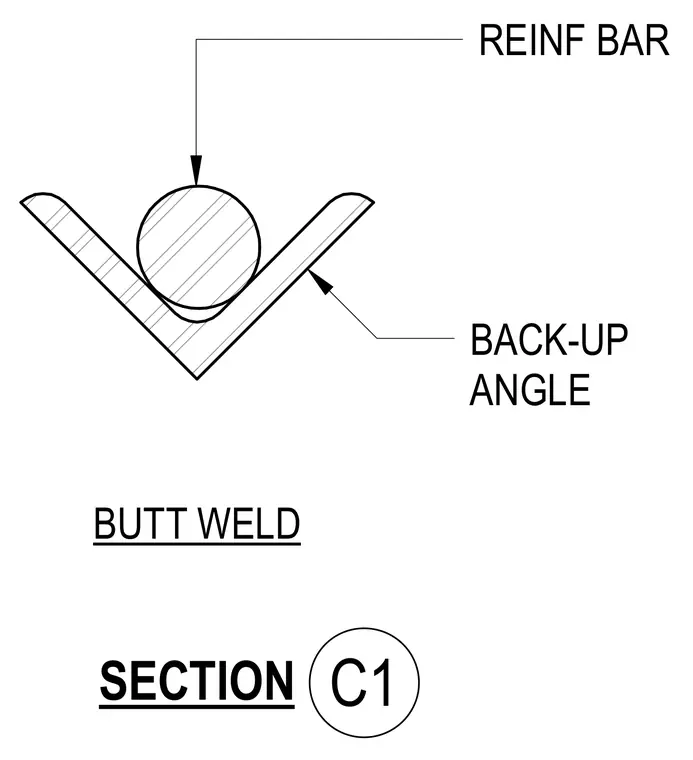

A reinforcing bar sits nested within the inside corner of a structural back-up angle. The assembly prepares the reinforcing bar for a butt weld joint along the steel connection. The angle profile provides support and alignment for the bar during the welding process.
