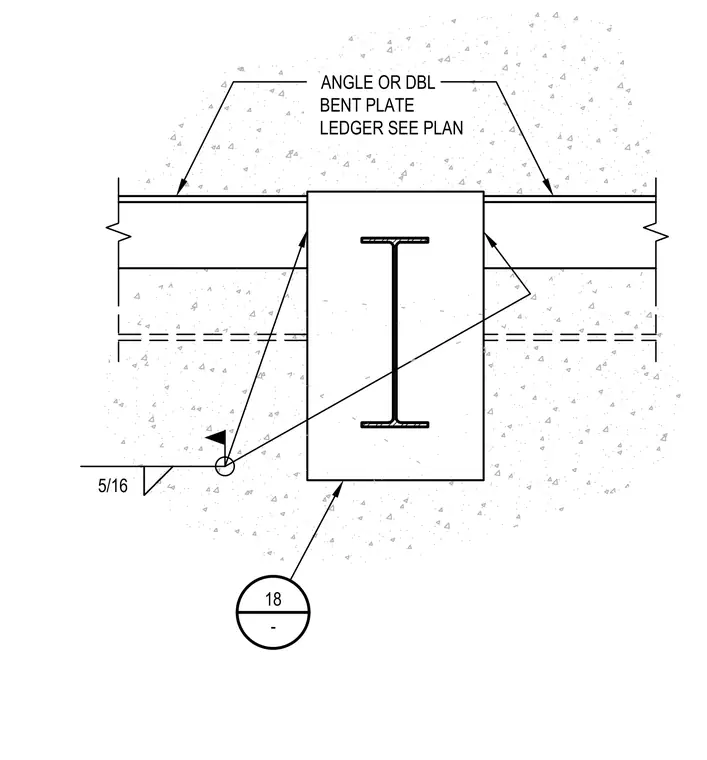

An angle or double bent plate ledger connects to the structural steel column or beam member as sized per plan. A five-sixteenth inch fillet weld secures the assembly at the connection points.
