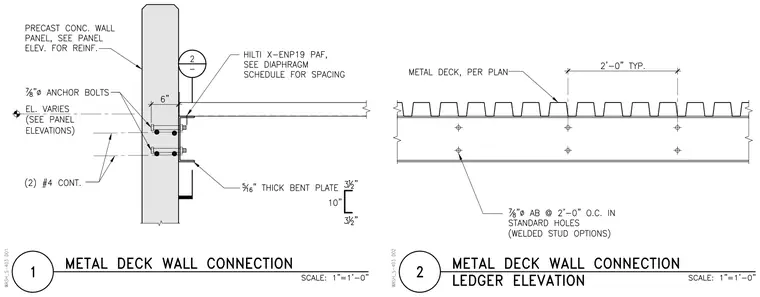

A metal deck bears against a 5/16-inch thick bent plate ledger anchored back to a precast concrete wall panel. The bent plate features 3 1/2-inch legs and a 10-inch web, secured to the wall with 7/8-inch diameter anchor bolts spaced at 2 feet 0 inches on center in standard holes, with welded stud options available. Two continuous number 4 reinforcing bars run horizontally through the precast panel at the anchor locations. The metal deck is fastened to the bent plate using Hilti X-ENP19 powder-actuated fasteners spaced per the diaphragm schedule.
