Structural · S-R2XM5

Braced Frame Baseplate Detail

Materials

Concrete Masonry / CMU

Elements

Walls Shear Walls Floors / Slabs Bracing Reinforcing

Connections

Braced Frame Connection Base Plate / Anchorage Rebar Splice / Development

About this detail

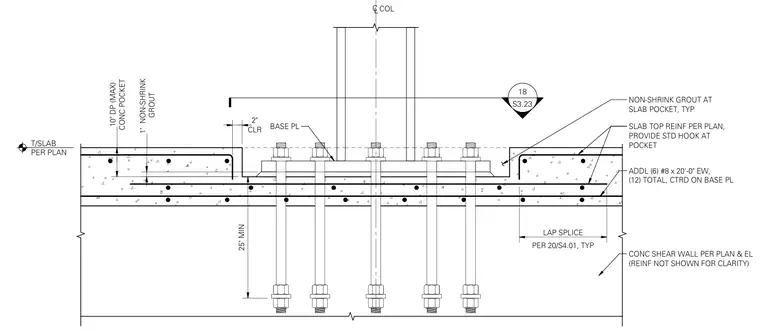

A structural steel column bears on a base plate anchored into a concrete shear wall with multiple long anchor bolts extending down through the foundation. A ten-inch deep maximum concrete slab pocket surrounds the base plate assembly and is filled with non-shrink grout. Additional reinforcing steel including six number eight bars at twenty feet length in each way, twelve total, are centered on the base plate per structural plans. Slab top reinforcing is provided with standard hooks at the pocket, maintaining a twenty-five inch minimum clearance and lap splices per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
