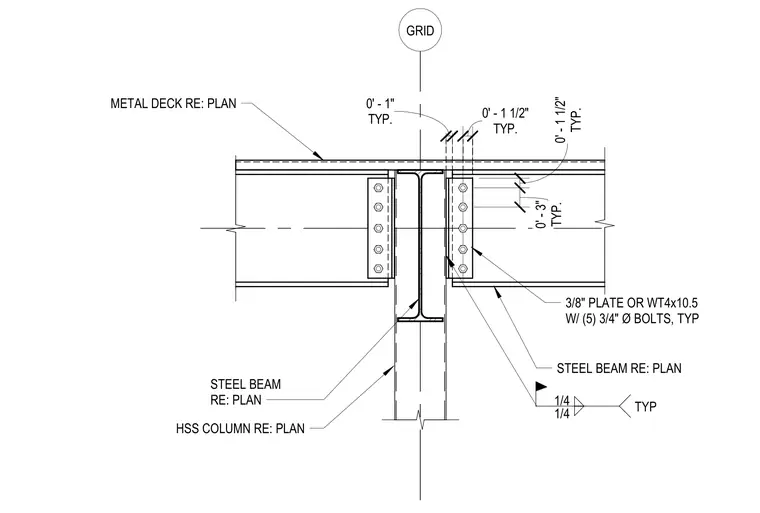

This assembly connects two steel beams to a central wide-flange column at a grid line. Each beam is secured to the column web using a 3/8-inch thick plate or a WT4x10.5 structural tee, which acts as a shear tab. The connection is fastened with five 3/4-inch diameter bolts on each side, spaced at 3 inches typical. The structural tee or plate is fillet welded to the column web with 1/4-inch welds on both sides. Metal decking is positioned above the beam flanges, with specific layout dimensions provided relative to the grid line.
Text on the drawing
GRID METAL DECK RE: PLAN FOR INFORMATION AND OREINTATION SHEAR CONNECTION RE: 6/S-90000 METAL DECK RE: PLAN STEEL BEAM RE: PLAN TYP. 0' - 1" 3/8" PLATE OR WT4x10.5 W/ (5) 3/4" Ø BOLTS, TYP TYP. 0' - 1 1/2" TYP. 0' - 3" TYP. 0' - 1 1/2"
