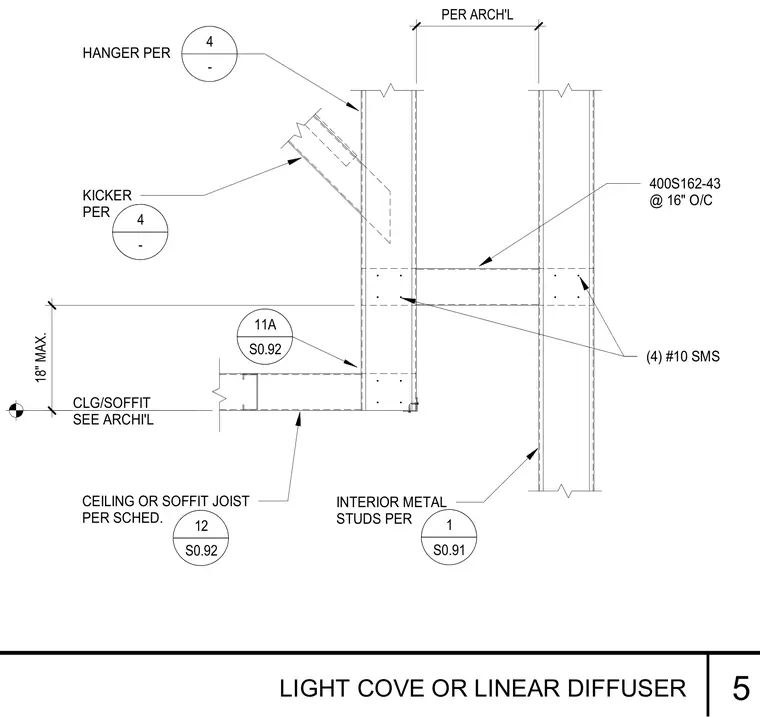

Interior metal studs spaced at 16 inches on center form the light cove and linear diffuser framing connection. The assembly incorporates 400S162-43 members connected with four number 10 sheet metal screws. A diagonal kicker brace ties back to the vertical stud framing. Ceiling and soffit joists are scheduled per architectural plans with a maximum 18-inch dimension.
CLG/SOFFIT SEE ARCHI'L (4) #10 SMS KICKER PER CEILING OR SOFFIT JOIST PER SCHED. 400S162-43 @ 16" O/C INTERIOR METAL STUDS PER 18" MAX. 12 S0.92 1 S0.91 11A S0.92 4 - PER ARCH'L HANGER PER 4 - LIGHT COVE OR LINEAR DIFFUSER 5
