Structural · S-R2AQE

Wide Flange Beam to Wide Flange Column Connection

Materials

Concrete Metal (misc.)

Elements

Columns Beams Roofs Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

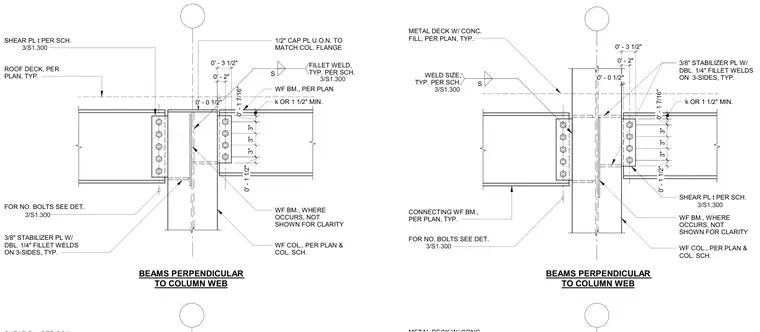

A wide flange beam frames into a wide flange column with beams perpendicular to the column web. The connection utilizes a shear plate with a thickness and bolt count per schedule, connecting the wide flange beam to the column flange. A one-half-inch cap plate matches the column flange, supplemented by a three-eighths-inch stabilizer plate featuring double one-quarter-inch fillet welds on three sides. Metal deck with concrete fill bears across the top of the framing assembly. Dimensions indicate vertical spacings such as three-inch bolt increments and clearance dimensions relative to the column centerline.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
