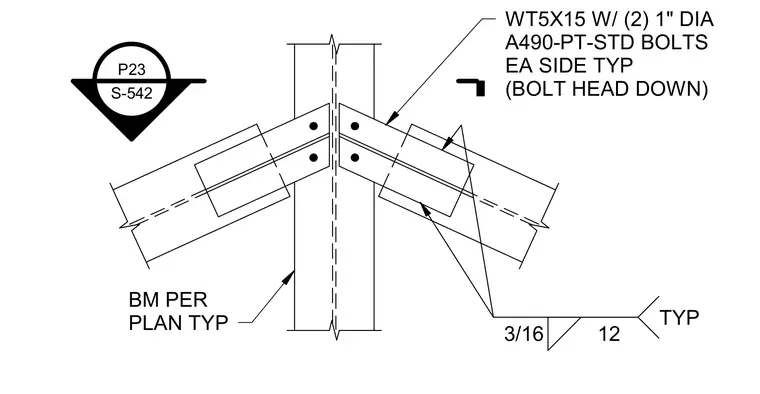

A structural steel tee section connects framing members across a central support line using WT5X15 profiles. Each side utilizes two 1-inch diameter A490 high-strength bolts installed with the bolt heads oriented downward. A three-sixteenths inch fillet weld secures the tee section with typical spacing noted as twelve inches. The framing beams are sized per plan specifications.
3/16 12 TYP P23 S-542 WT5X15 W/ (2) 1" DIA A490-PT-STD BOLTS EA SIDE TYP (BOLT HEAD DOWN) BM PER PLAN TYP
