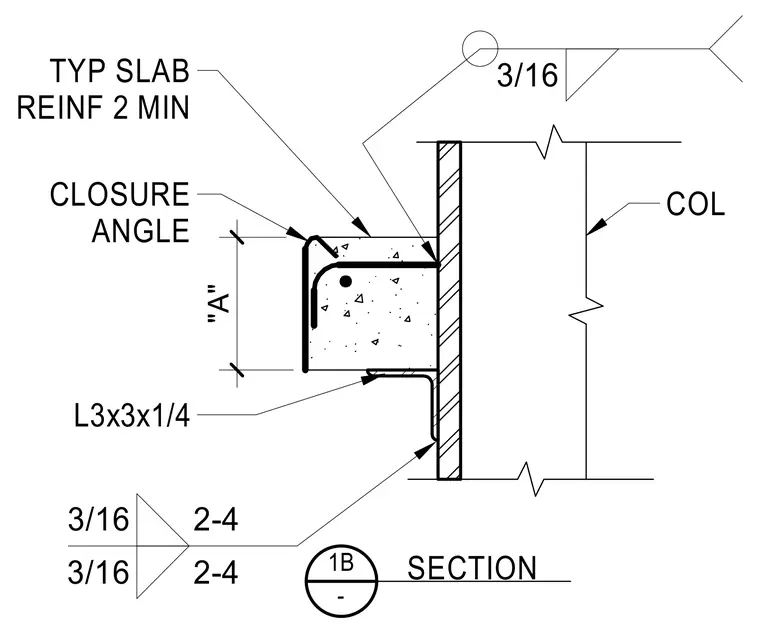

A structural steel angle supports the edge of a concrete slab against a column flange. A closure angle is placed at the outer edge of the slab. Reinforcing bars are tied within the concrete closure pour, welded to the column with three-sixteenths inch fillet welds. The lower support angle is secured to the column with intermittent fillet welds.
1B - SECTION L3x3x1/4 TYP SLAB REINF 2 MIN CLOSURE ANGLE COL 3/16 2-4 3/16 2-4 "A" 3/16
