Structural · S-R2245

Cable Bus Support Frame Detail

Materials

Concrete Steel

Elements

Anchors / Embeds

Connections

HSS Connection Embed Plate

About this detail

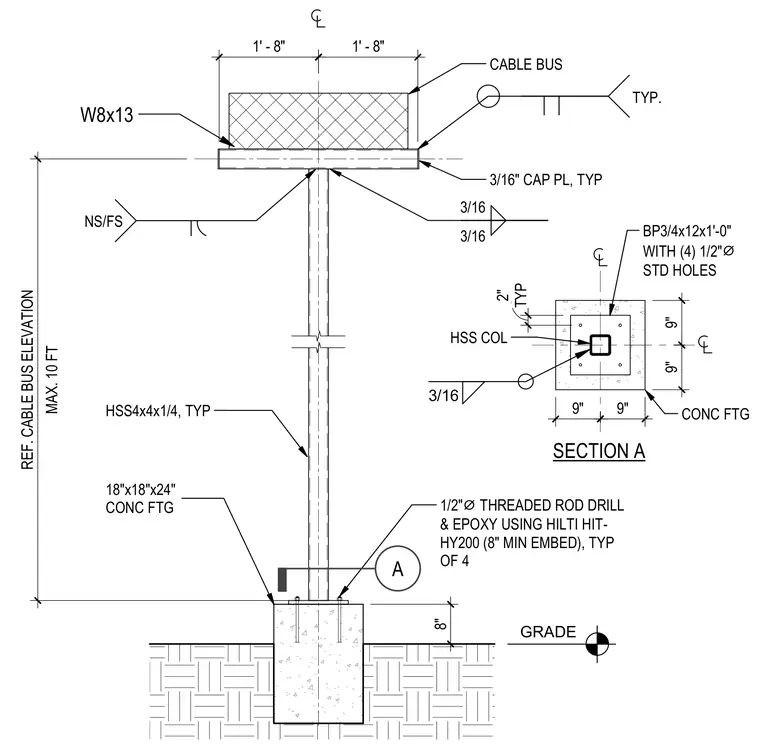

A cable bus support frame is mounted on a hollow structural section column of size HSS 4x4x1/4, which sits atop an 18-inch by 18-inch by 24-inch concrete footing. A three-quarter-inch thick base plate measuring 12 inches by 1 foot zero inches with four one-half-inch diameter standard holes is secured to the footing using four one-half-inch diameter threaded rods drilled and epoxied with Hilti HIT-HY200 having an 8-inch minimum embedment. At the top of the column, a three-sixteenth-inch cap plate connects to a W8x13 steel beam supporting the cable bus above, with fillet welds specified on both near side and far side.
