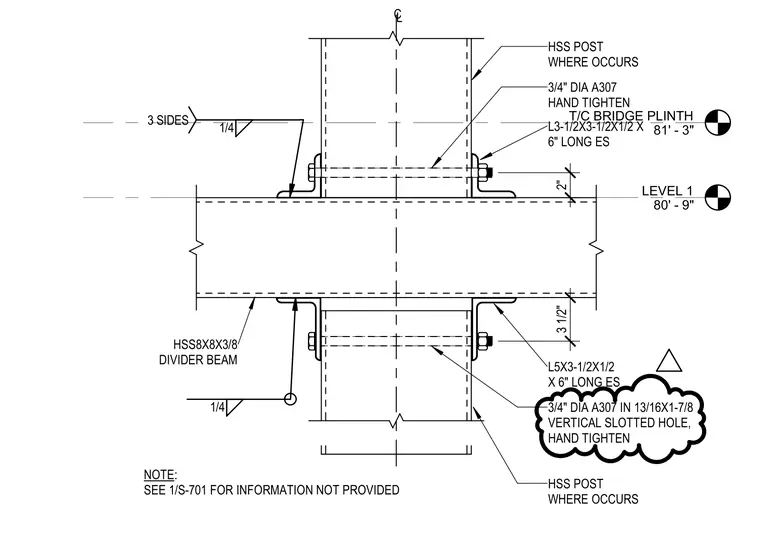

An HSS8x8x3/8 divider beam frames into vertical hollow structural section posts with steel angles welded on three sides with a quarter-inch fillet weld. The upper connection uses an L5x3-1/2x1/2 angle six inches long on each side, secured with three-quarter-inch diameter ASTM A307 bolts hand-tightened in vertical slotted holes measuring thirteen-sixteenths by one-and-seven-eighths inches to allow movement. The lower connection uses an L3-1/2x3-1/2x1/2 angle six inches long on each side with matching three-quarter-inch diameter ASTM A307 hand-tightened bolts. Reference levels sit at Level 1 at eighty feet nine inches and the top of the bridge plinth at eighty-one feet three inches.
LEVEL 1 80' - 9" T/C BRIDGE PLINTH 81' - 3" 3 1/2" 2" HSS8X8X3/8 DIVIDER BEAM L5X3-1/2X1/2 X 6" LONG ES 3/4" DIA A307 IN 13/16X1-7/8 VERTICAL SLOTTED HOLE, HAND TIGHTEN L3-1/2X3-1/2X1/2 X 6" LONG ES 3/4" DIA A307 HAND TIGHTEN HSS POST WHERE OCCURS 1/4 3 SIDES 1/4 C L HSS POST WHERE OCCURS NOTE: SEE 1/S-701 FOR INFORMATION NOT PROVIDED
