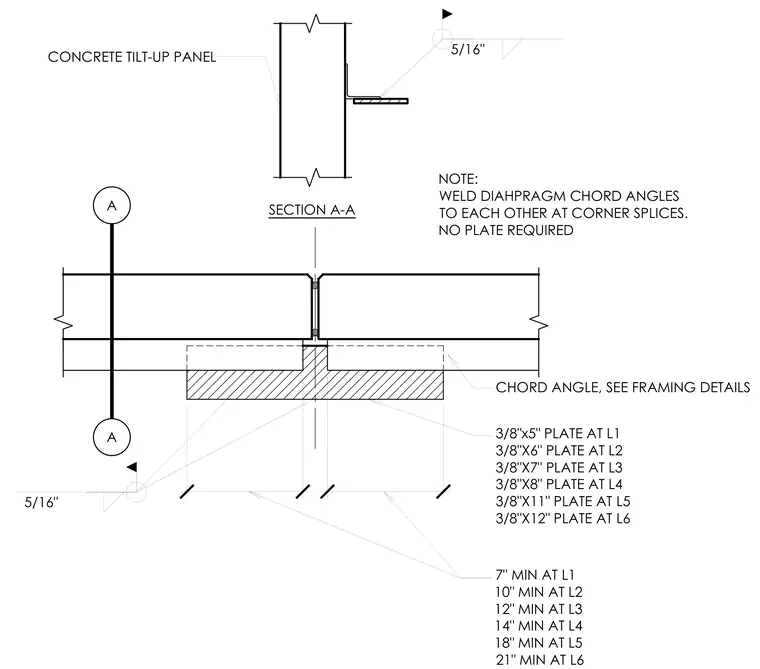

A diaphragm chord splice connects concrete tilt-up panels using chord angles sized per framing details and welded together with a five-sixteenths-inch fillet weld at corner splices without requiring a plate. Splice plates measuring three-eighths-inch thick vary in width from five inches at level one up to twelve inches at level six. Minimum dimensions range from seven inches at level one to twenty-one inches at level six.
SECTION A-A CHORD ANGLE, SEE FRAMING DETAILS 5/16" CONCRETE TILT-UP PANEL 5/16" NOTE: WELD DIAHPRAGM CHORD ANGLES TO EACH OTHER AT CORNER SPLICES. NO PLATE REQUIRED 3/8"x5" PLATE AT L1 3/8"X6" PLATE AT L2 3/8"X7" PLATE AT L3 3/8"X8" PLATE AT L4 3/8"X11" PLATE AT L5 3/8"X12" PLATE AT L6 A A 7" MIN AT L1 10" MIN AT L2 12" MIN AT L3 14" MIN AT L4 18" MIN AT L5 21" MIN AT L6
