A stair stringer connects to a steel beam using a supplier-provided connection plate welded to the structural members. A steel beam web stiffener is provided per the general structural notes. A separate detail handles the stair landing connection to accommodate drift displacements. Alternative connection designs proposed by the stair supplier are also acceptable.

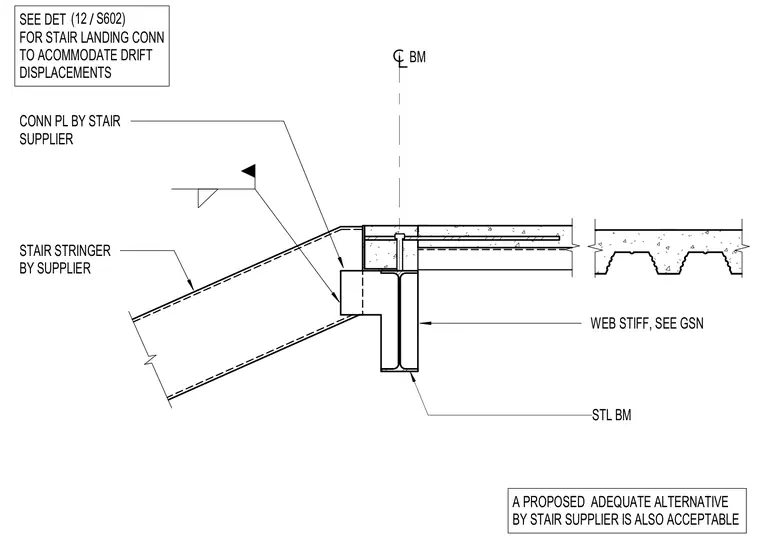

STL BM WEB STIFF, SEE GSN STAIR STRINGER BY SUPPLIER CONN PL BY STAIR SUPPLIER SEE DET FOR STAIR LANDING CONN TO ACOMMODATE DRIFT DISPLACEMENTS BM A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE / (12 S602)
